Webserver¶
What's Now Playing has a built-in web server that allows for a wide
variety of customization and deployments, including complex ones
involving multiple hosts. Treat the files intemplates as examples; copy them to new
names and modify them until you are happy. Change the font, change the
output order, do whatever it is you need to do.
Using one of the WebSocket examples as your starting point is recommended as they are generally more predictable. They update when the song updates vs. the others that use a timer to check for updates. See more about WebSockets below.
Installation¶
- Open Settings from the What's Now Playing icon
- Select OBS WebSocket from the list of available input sources.
- Check Enable
- Change any settings as desired. See below.
- Click Save
Settings¶
| Setting | Description |
|---|---|
| Port | The HTTP server's TCP port. A firewall should protect this port for security reasons to limit which hosts will be permitted to connect. What's Now Playing does not limit what systems may connect to it. |
| HTML Template | The Jinja2 template file to use when fetching index.md. See Templates for more information. |
| Once | Only give index.md once per title, then return an empty refresh page until the next song change. This setting is handy for providing a simple way to do fade-in and fade-out using simple HTML. |
OBS Settings¶

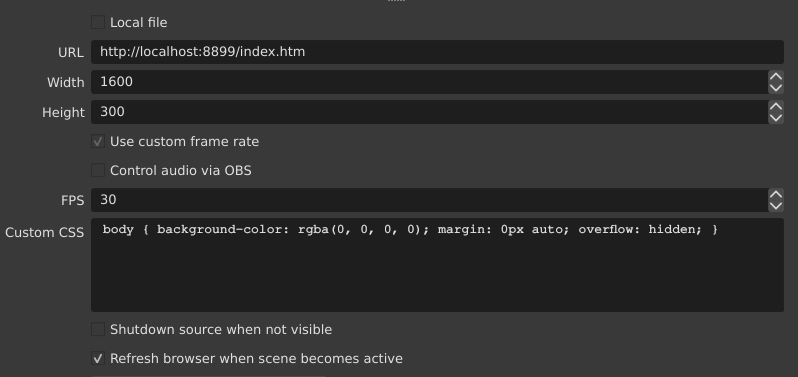

Once the webserver is enabled, hop into OBS and configure a Browser
source. Set the size to match the HTML template you are using. (Check
the width and height values in the bundled templates). Then place
the OBS source wherever you would like.
Supported URLs¶
| URL | Description |
|---|---|
| /index.md (or /index.htm or just /) | This URL generates either a title card based upon the preconfigured template. |
| /index.txt | Same output as the text output in the General settings. |
| /cover.png | This URL will return the cover image, if available. |
| /httpstatic/ | Any content in`Documents/WhatsNowPlaying/httpstatic` will get served under this URL. |
| /template.htm | Any template.htm file in the templates directory. See below. |
Additionally, referencing /<templatename>.htm will also read template.htm from the templates directory and
render it. This feature allows you to use more than one template at a time for advanced setups.
See also Artist Extras for other URLs when that set of features is enabled.
REST API¶
The webserver provides REST API endpoints for programmatic access to track information and remote input functionality. See the API Reference for complete endpoint documentation.
WebSockets¶
New with version 3.0.0 is a continual feed via WebSockets. The feed is a
JSON-formatted stream that will get an update on every title change. To
connect, use the URL ws://hostname:port/wsstream. The files that begin
with ws- in the templates directory use WebSockets.
Variables set should match what is on the Templates page. Be aware that values may be null.
